F-ONE 'Create Your Own' Phantom S Foil Complete

F-One

$2,527.00

Front Wing
Mast
Rear Wing

NOTE: ALL OF OUR COMPLETE F-ONE FOIL PACKAGE PRICES INCLUDE A 10% PACKAGE DISCOUNT.

BONUS: GET 10% OFF ANY ADDITIONAL FRONT WING WITH YOUR PACKAGE PURCHASE. CONTACT US TO ARRANGE.


Go faster while surfing waves, bigger on your jumps and tricks, and make sharper turns with the PHANTOM S CARBON foils.

Read about how to choose your foil

Built using the Monobloc construction with pre-preg carbon, the foils are both very light and really strong. This set-up offers better load transmission and better stiffness throughout the different parts for maximum control. The Titan connection allows to plug both an aluminium or carbon mast and the fuselage is split in two parts to facilitate transportation.

OVERVIEW:

  • Great maneuverability
  • Incredible carving, no matter how tight or wide the turns
  • Ideal for surf and freestyle
  • Speed and glide

PROGRAM:

  • 100% - Speed
  • 100% - Carving
  • 85% - Pumping
  • 80% - Glide Ratio


This package includes everything you'll need to get ripping! (apart from the board!):

  • Phantom S Front wing (size of your choice - see information below)
  • Fuselage Tail (Recommeded size provided - see details below)
  • Tail wing (C275 Surf Stab - see details below)
  • Mast (size & construction of your choice - see information below)
  • Mast Foot (for aluminuim masts)
  • Base plate (for aluminium masts, contact us for tuttle option)
  • Bolt set & tools (complete)


FRONT WINGS:

The PHANTOM S CARBON range is aimed at experienced riders who are ready to reach the next level in surf foil and wing foil. Highly maneuverable, these foils are very responsive and will allow you to make incredibly sharp turns just as much as wide turns. They are also the best choice for your wing foil freestyle sessions, helping you refine many of your tricks and jumps. Finally, surf bigger waves and gain more speed as you experience thrilling sensations on the water with these foils.

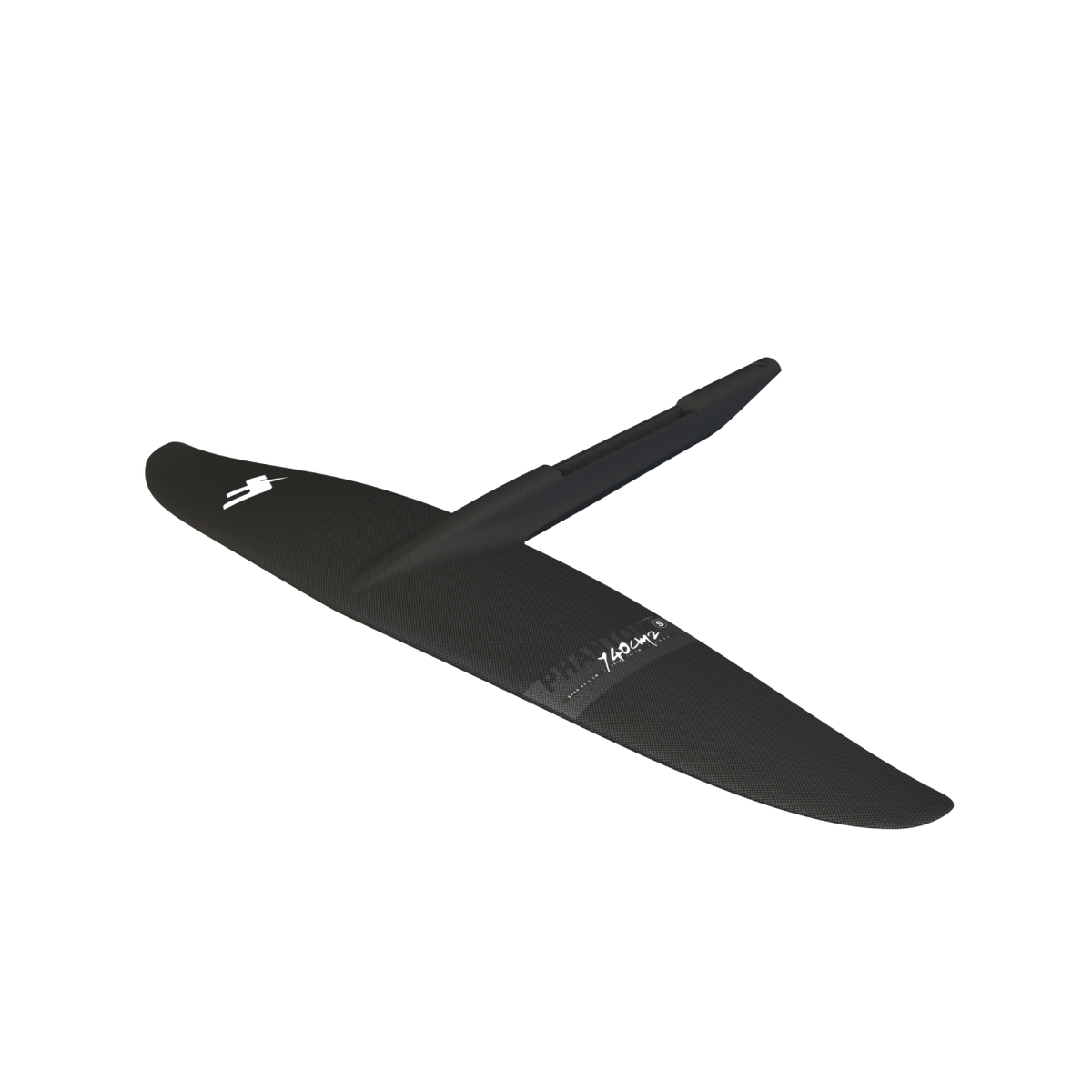

PHANTOM S 740:

The PHANTOM S 740 is the smallest and lightest size of the entire PHANTOM range. It is geared towards experienced surf foilers and elite wing foilers. It is the perfect choice to ride in big waves, and its small surface area also makes it highly efficient and enjoyable towing-in.

SPECS:

  • Area: 740 cm²
  • Span: 69.5 cm
  • Aspect Ratio: 6.5
  • Recommended rear wing: C250 Surf
  • Recommended fuselage: Extra-Short (XS)

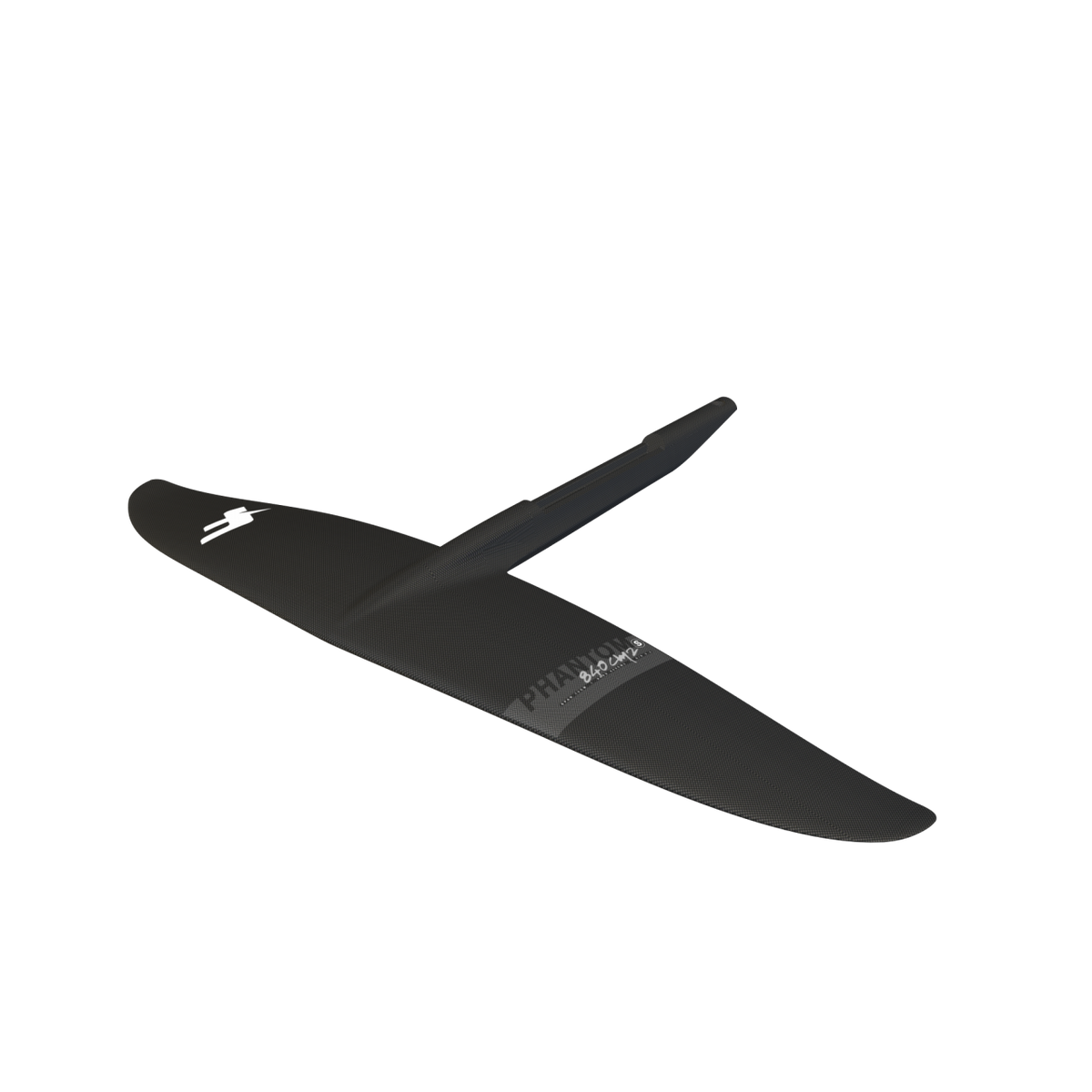

PHANTOM S 840:

The PHANTOM S 840 is intended for talented riders looking for speed and maneuverability. Like the other PHANTOM foils, it is very versatile and can be used for wing foiling in winds above 20 knots and foil surfing in 1.50m waves.

SPECS:

  • Area: 840 cm²
  • Span: 74 cm
  • Aspect Ratio: 6.5
  • Recommended rear wing: C250 Surf
  • Recommended fuselage: Extra-Short (XS)

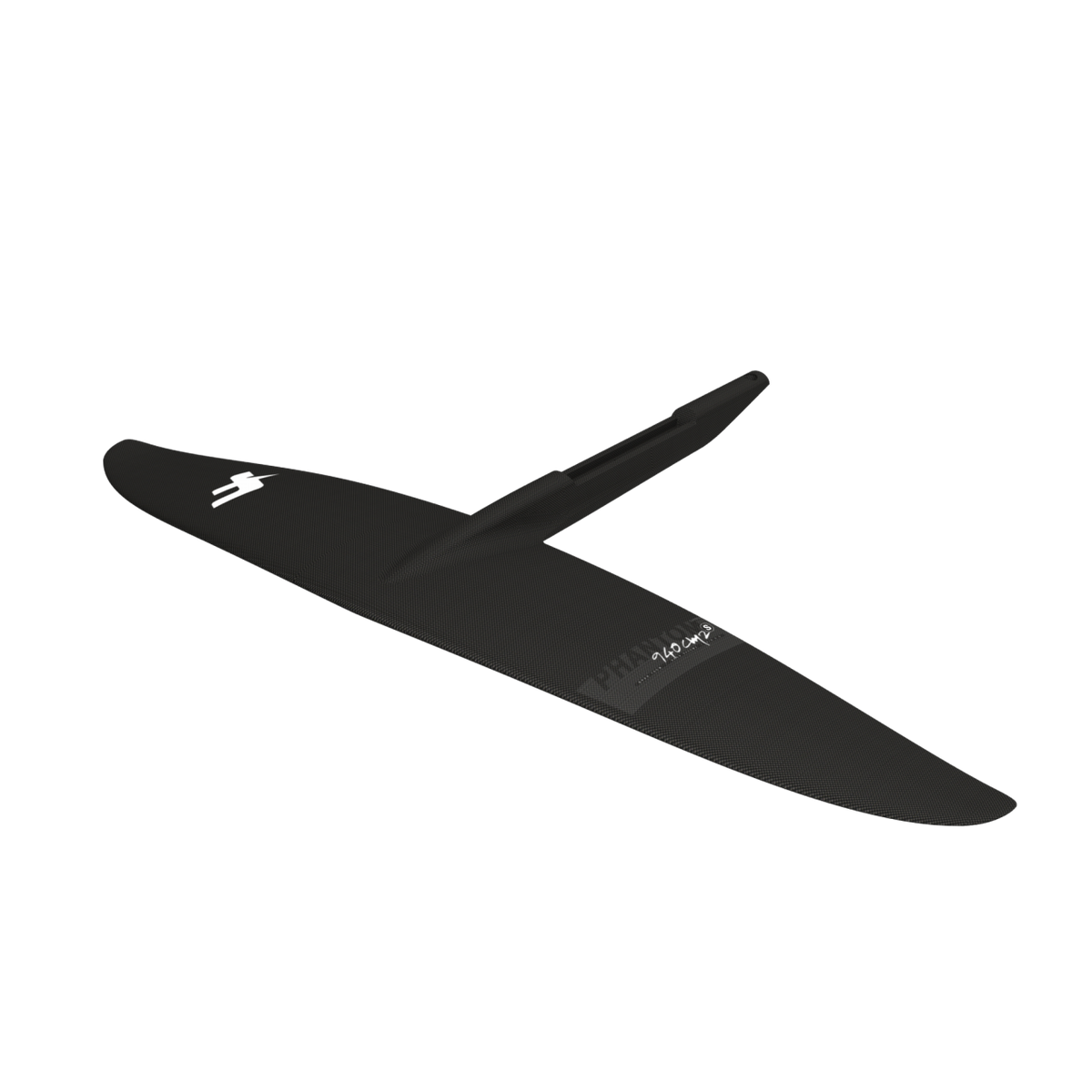

PHANTOM S 940:

The PHANTOM S 940 is a concentrate of speed that allows radical carves and a surprisingly efficient pumping. Its highest potential can be exploited in wing or in waves > 1m, as well as in downwind.

SPECS:

  • Area: 940 cm²
  • Span: 78 cm
  • Aspect Ratio: 6.5
  • Recommended rear wing: C250 Surf
  • Recommended fuselage: Extra-Short (XS)


FUSELAGE (CARBON TAIL)

The Fuselage Tail Carbon are an essential complement to the F-ONE Monobloc carbon wings. It connects with the front wing behind the TITAN mast slot in an area where the loads are reduced. Still, the shape of the connection is inspired from the TITAN design and offers a very robust and stiff assembly. At the back, the cradle for the stabilizer is designed with the right angle to make the front wing fly with ease and efficiency. The Fuselage Tail Carbon are built in pre-preg carbon with a foam core to keep their weight extremely light. Some solidly anchored brass inserts are used for all fastenings.

Short:

  • More maneuverability
  • More responsiveness
  • Ultralight carbon construction
  • Length: 37 cm


    XS:

    • Even more Maneuverability!
    • Even more Responsiveness!
    • Ultralight carbon construction
    • Length: 32 cm


    XXS:

    • Better maneuverability!
    • Better responsiveness!
    • Ultralight carbon construction
    • Length: 30 cm


    XXXS:

    • Ultimate maneuverability!!
    • Ultimate responsiveness!
    • Ultralight carbon construction
    • For advanced riders only!
    • Length: 27.5 cm

    Note: Recommended fuselage will be supplied (refer to front wing details). If you would like to specify a different fuselge length please contact us to arrange.


    REAR WING

    Built in Pre-Preg Carbon and designed to be securely mounted on F-ONE fuselages, its profile and angle of incidence were tuned to achieve a very intuitive balance.

    SIZES:

    • C250 SURF - All three PHANTOM S CARBON are recommended with the C250 SURF stab. This stab has been thought out to perfectly exploit the power and abilities of these foils. Sharp and precise, it will allow you to gain speed and maneuverability, and to easily connect waves.
    • C250 FENCE (NEW FOR 2022) - The C250 FENCE HM stabilizer has been specifically designed to enhance maneuverability through the addition of fences on the wingtips. This stab is also incredibly stable while upwind or yawing and will delay the stall of the foil.

    Note: Recommended rear wing will be supplied (refer to front wing details). If you would like to specify a different rear wing please contact us to arrange.

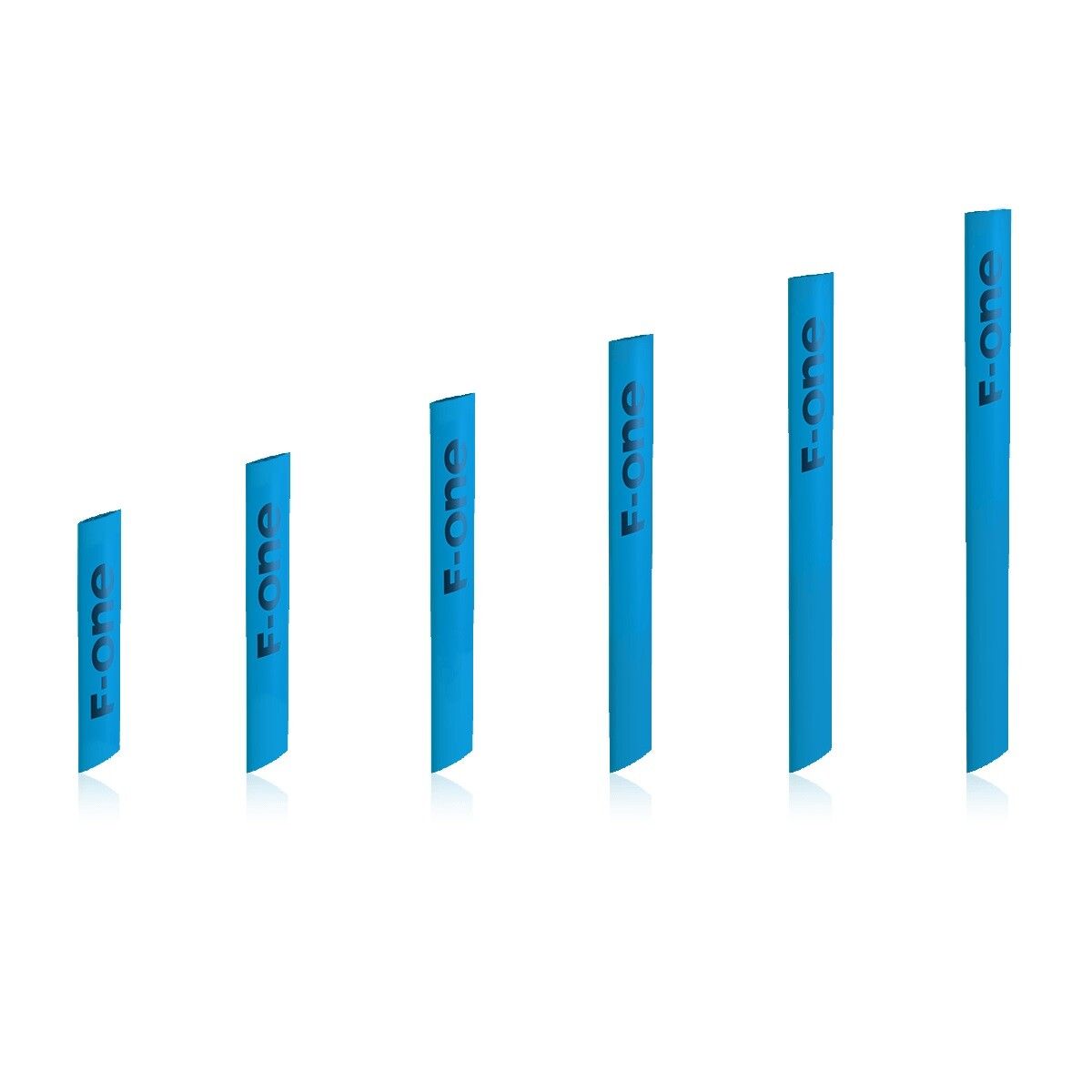

    MAST (ALUMINIUM)

    The F-ONE aluminium mast can be used for all disciplines, kite, surf, stand up paddle and windsurf. The profile is extruded with precision from 6063 aluminium block. The shape of its section benefits from our years of experience in kitefoiling to provide the best gliding feel while keeping the strength up and the weight down. It comes with two stainless steel helicoil inserts at the bottom and at the top to fasten the connecting parts and is therefore fully modular.

    The aluminium mast can be used on every foil of the range and it is very easy to jump from one length to another.  A number of parts are available for board connection (Plate, KF, Deep KF, Tuttle).

    SIZES: 45cm, 55cm, 65cm, 75cm, 85cm, 95cm

    Please contact us if your preferred size is not listed.

    MAST (CARBON 16)

    Accessible, reliable and ultra-stiff, the F-ONE Carbon Mast 16 will bring instant feedback and direct sensations while foiling.

    OVERVIEW:

    • 16mm profile
    • High rigidity for a more direct feel
    • Full Monobloc construction
    • Immediate feedback and connection

    SIZES: 80cm, 85cm

    Please contact us if your preferred size is not listed.

    MAST (HM CARBON 14)

    A true masterpiece of composite craftmanship and design, the F-ONE Carbon Mast HM 14 will transform your foiling experience. Slice through the water and enjoy the purest glide with its ultra-thin profile, full Monobloc structure and High Modulus Carbon construction.

    OVERVIEW:

    • Ultra-thin 14mm profile
    • Full Monobloc construction
    • High Modulus Carbon layup
    • High performance
    • Increased rigidity

    SIZES: 80cm, 85cm

    Please contact us if your preferred size is not listed.

    MAST (HM CARBON)

    A true masterpiece of composite craftmanship and design, the F-ONE Carbon Mast HM was designed to transform your foiling experience by a significant improvement of the glide and a dramatic weight reduction matched with impressive rigidity.

    OVERVIEW:

    • Stiffer feel
    • Direct connection
    • Immediate feedback
    • High performance

    SIZES: 95cm, 105cm

    Please contact us if your preferred size is not listed.





    Advice: Our team are passionate, experienced boardriders. We have a wealth of knowledge and expertise to share and we encourage you to ask for our advice and guidance.

    Delivery: We offer discounted shipping to New Zealand (North and South Island). Quotes provided at checkout.

    Returns: Our mission is to ensure you are supplied with products that are suitable for their intended purpose. We will always do our best to accommodate genuine returns / exchanges, please see our Terms and Conditions for more information.


    SKU: 30305-2-8 TAGS: Foiling | Surf, Foiling | Tow / Wake, Foiling | Wing, Foiling | Kite
